The Structure Of Light Shelf

08. 16, 2019

Here is a Warehouse Storage Racks Manufacturer talking about the structure of light shelf.


Light Duty Shelving is very economical and convenient. A warehouse shelf is often called a light shelf because of its light weight. The shelf is composed of three components: a column piece, a beam, and a laminate. The lightweight shelf is designed with a screwless combination, which is convenient and quick to install and disassemble. Suitable for storing some light and small items, it is a kind of laminate shelf. The structure of the light-duty shelf is the same as that of the medium-sized one. It can be dismantled and disassembled. The height of the layer can be adjusted freely with a pitch of 5cm. However, the material specifications are relatively small and the load capacity is relatively small. The light shelf is relatively economical and the structure is relatively versatile. The shelf should be stable and reliable. It can carry 100-200kg in the span of 1500cm. The surface is spray-treated, which is beautiful and neat. Suitable for storage of light and medium-sized items, manual access.

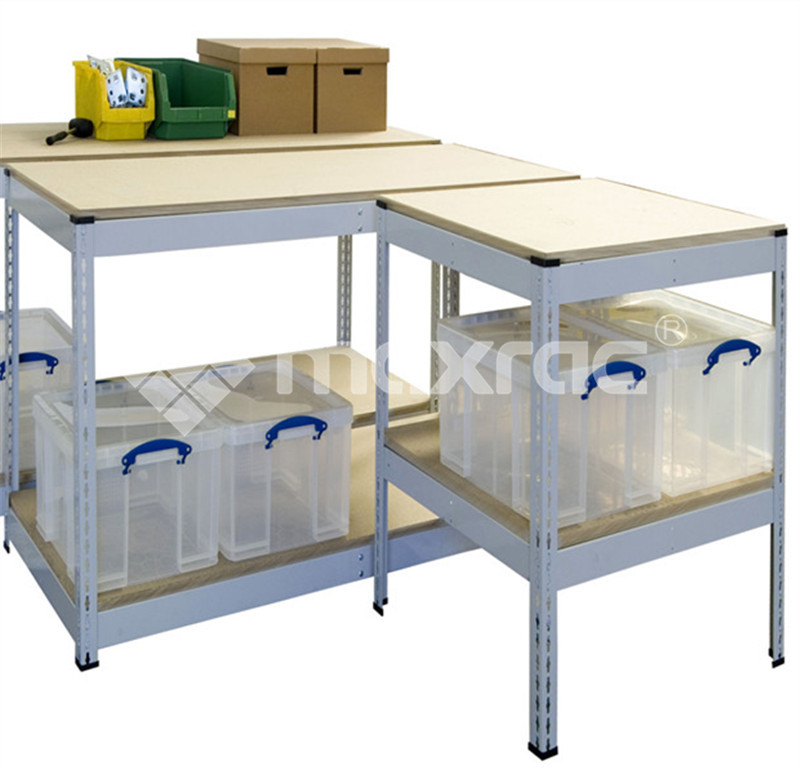

Light Duty Shelving

Light Duty Shelving


Light shelf structure:

1. Shelf column: made by double-sided punching of equilateral angle steel, the hole distance is arranged in a straight line at a distance of 50mm, and the column hole is used for hooking the layer;

2. Shelf steel laminate: the use of cold-rolled steel plate according to the required size of four sides bending forming.

3. The column and the steel plate are connected and fixed by the quick-release pin and the triangular fixing piece.

4. After processing all parts of the shelf, all the sanding > pickling phosphating > automatic powder electrostatic spraying > drying and other processes to assemble the finished product. The surface of the finished product produced is smooth and beautiful; the laminate can be adjusted up and down freely, and the disassembly and assembly is convenient.
